Mast Profiles

Mast Extrusion Profiles

World’s most modern Matched Range of Yacht Mast Sections

>> Download This Table As An Excel Spreadsheet



Dim a

dim b

weight

area

moment lxx

moment lyy

Stock lengths



Mm

mm

kg/mtr

mm2

mm^4x10^2

mm^4x10^2

In Australia

DL138

138

90

3

1109

245

116

14.5m

DL152

152

105

3.8

1384

379

192

16m

DL165

165

114

4.6

1711

566

291

16.5m

DL183

183

126

5.3

1975

789

404

16.75m

DL195

195

136

6.1

2267

1030

543

18m

DL210

210

145

7

2594

1357

710

16.75m

DL231

231

158

8.1

2995

1893

976

17.5m

DL247

247

170

8.9

3271

2348

1218

17.75 + 19.3m

DL277

277

185

10.85

4020

3623

1772

19.3m

DL307

307

200

12.9

4768

5156

2482

19.3m

DL337

337

220

15

5552

7151

3515

11.85 +14m

DL387

387

244

23.20

8447

13946

6611

16m

DL437

437

260

27

9828

9828

8782

16m

DL487

487

276

29.5

10712

26492

10807

16m
























(DNV Certification available upon request for mill run orders)
(Lengths of 165 to 307 available up to 23mtrs, 337 up to 14mtrs and 138, 152, 387, 437 and 487 up to 16mtrs)

Advantages of the DLYR range of extrusions

1) 14 Extrusions all of similar shape
2) A full range of investment cast alloy goosenecks available with a full range of investment cast gooseneck sub components available off the shelf also
3) We have a range of forward and aft sleaves available, the largest forward sleave fits internally inside the DL487, DL437, DL387, DL337 and externally to the DL247. The next smaller one fits internally to the DL307 and externally to the DL231. The next one down fits internally to the DL277 and externally to the DL210 and the smallest of the 4 fits internally to the DL247 and externally to the DL195. All the smaller sections are easily matched to high strength heavy wall tubes. The aft sleave fits inside all of the extrusions but needs to be trimmed down slightly to fit inside the DL307 to the smallest section. These sleaves are used for joining, stiffening and doublers for gooseneck attachment.
4) We have all mast extrusions with the exact same track. Another unique feature is the myriad of options available in stiffening all of the extrusions both forward and aft as well as athwartships either internally or externally. It perfectly suits the 15/16” Nylatron batten slide fittings and well suited to Monohulls up to 45ft and Multihulls up to 40ft. A bolt rope track is available for smaller boats if required and this same track suits a 50mm reduced section for use as a trailer sailer mast. Six different bonafide options are available as RBC tracks that can be supplied in 7.6mtr lengths and considerable cheaper than the genuine tracks available with slug kits. Aligning extrusions are also available for the joins.
5) Available off the shelf ex Brisbane in all sizes DL138, 152, 387, 437, and 487 all Australian made. DL165 through to DL337 all available ex mill in China in quantities of 2000kgs per profile. Pricing available on request and subject to change.

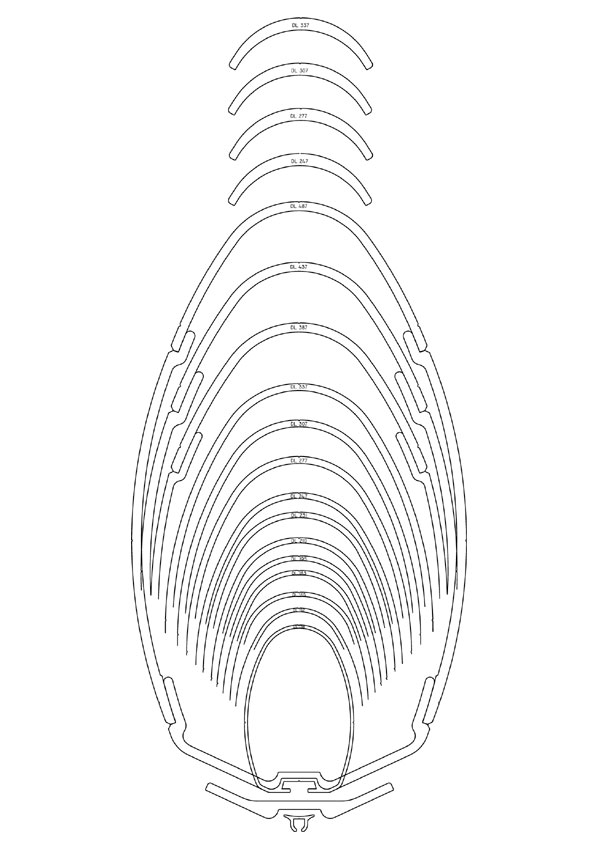

Mast Extrusion Diagram
